LR1278Na-G SX1278 LoRa Module Smart City Farming Street Light IoT Solutions

LR1278Na-G SX1278 LoRa Module Smart City Farming Street Light IoT Solutions
LR1278Na-G SX1278 LoRa Module Smart City Farming Street Light IoT Solutions

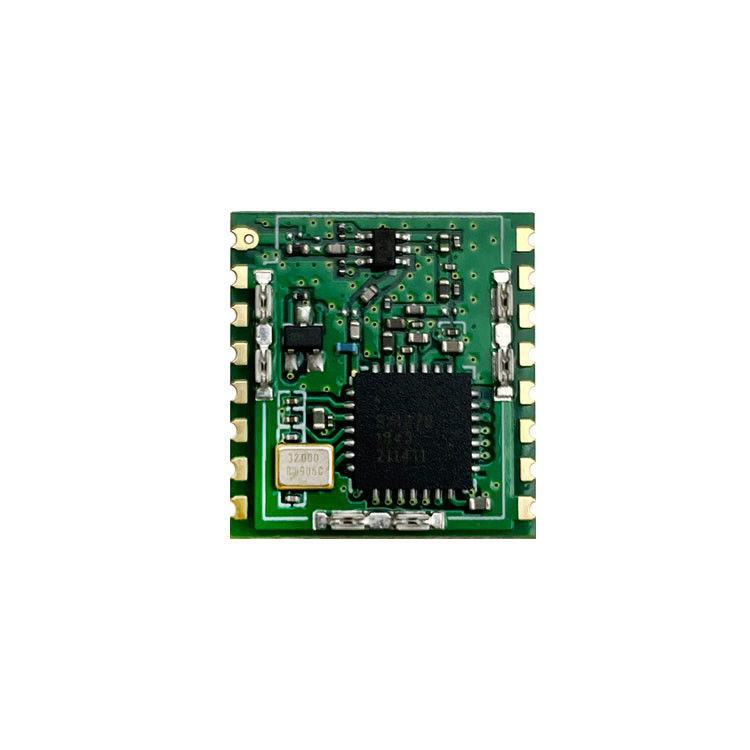

Image Grand :  LR1278Na-G SX1278 LoRa Module Smart City Farming Street Light IoT Solutions

Détails sur le produit:
Lieu d'origine: Pékin
Nom de marque: Cansec Wireless
Numéro de modèle: LR1278NA-G
Conditions de paiement et expédition:
Quantité de commande min: 1000
Prix: USD 3.55$ per piece
Détails d'emballage: Trois couches de sac antistatique de protection et de boîte étanche à l'humidité et en carton assure
Délai de livraison: 5-8 semaines
Conditions de paiement: T/T
Capacité d'approvisionnement: 20000000 unités par an

LR1278Na-G SX1278 LoRa Module Smart City Farming Street Light IoT Solutions

description de
Jeu de puces: Semtech SX1278 Application: IOT
Taille: 16*17*3mm Température de fonctionnement: -20 - 70℃
Tension d'opération: 2.7-3.6V Puissance de TX: 20dBm
Sensibilité de Rx: -139dBm Dorment la consommation actuelle: 0.1μA
Surligner:

SX1278 LoRa Module

,

LR1278Na-G LoRa Module

,

Semtech LoRa Module

LR1278Na-G SX1278 LoRa Module Smart City Farming Street Light IoT Solutions 0

Smart City Farming Street Light IoT Solutions LoRa Transmitter Receiver Module Cansec LR1278Na-G SX1278 LoRa Module



Parameter
Min
Typ
Max
Unit
Operating Voltage
2.7
-
3.6
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
-
0.1
-
uA
Receive mode
-
11.7
-
mA
Transmit Mode (RFOP =+20dBm, on PA_BOOST)
-
117
-
mA
TX Power (For Carrier)
-
18
20
dBm
RX Sensitivity (For Lora Modulation)
-
-
-139
dBm



Smart City Farming Street Light IoT Solutions LoRa Transmitter Receiver Module Cansec LR1278Na-G SX1278 LoRa Module



1. The LR1278NA-G module is designed based on SX1278. The SX1278 incorporates the LoRaTM spread spectrum modem which is capable of achieving significantly longer range than existing systems based on FSK or OOK modulation.

2. At maximum data rates of LoRaTM the sensitivity is 8dB better than FSK, but using a low cost bill of materials with a 20ppm XTAL LoRaTM can improve receiver sensitivity by more than 20dB compared to FSK.
3. For maximum flexibility the user may decide on the spread spectrum modulation bandwidth (BW), spreading factor (SF) and error correction rate (CR). Another benefit of the spread modulation is that each spreading factor is orthogonal - thus multiple transmitted signals can occupy the same channel without interfering. This also permits simple coexistence with existing FSK based systems. Standard GFSK, FSK, OOK, and GMSK modulation is also provided to allow compatibility with existing systems or standards such as wireless MBUS and IEEE 802.15.4g.

Applications
Automated Meter Reading.
Home and Building Automation.
Wireless Alarm and Security Systems.
Industrial Monitoring and Control
Long range Irrigation System

LR1278Na-G SX1278 LoRa Module Smart City Farming Street Light IoT Solutions 1

LR1278Na-G SX1278 LoRa Module Smart City Farming Street Light IoT Solutions 2LR1278Na-G SX1278 LoRa Module Smart City Farming Street Light IoT Solutions 3

LR1278Na-G SX1278 LoRa Module Smart City Farming Street Light IoT Solutions 4

LR1278Na-G SX1278 LoRa Module Smart City Farming Street Light IoT Solutions 5

LR1278Na-G SX1278 LoRa Module Smart City Farming Street Light IoT Solutions 6

LR1278Na-G SX1278 LoRa Module Smart City Farming Street Light IoT Solutions 7

LR1278Na-G SX1278 LoRa Module Smart City Farming Street Light IoT Solutions 8

LR1278Na-G SX1278 LoRa Module Smart City Farming Street Light IoT Solutions 9
LR1278Na-G SX1278 LoRa Module Smart City Farming Street Light IoT Solutions 10
LR1278Na-G SX1278 LoRa Module Smart City Farming Street Light IoT Solutions 11
LR1278Na-G SX1278 LoRa Module Smart City Farming Street Light IoT Solutions 12
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
